Shortcut to adventure.

A shortcut to adventure.

The DolomitAn e-MTB that transforms performance into freedom.

Where others dismount, your ride truly begins. The Dolomit combines alpine strength with intelligent power. Its robust 110 Nm motor, 720 Wh battery, and sturdy Suntour suspension fork prepare you for everything that lies beyond the next turn.
Black Mirage
Drizzle Green

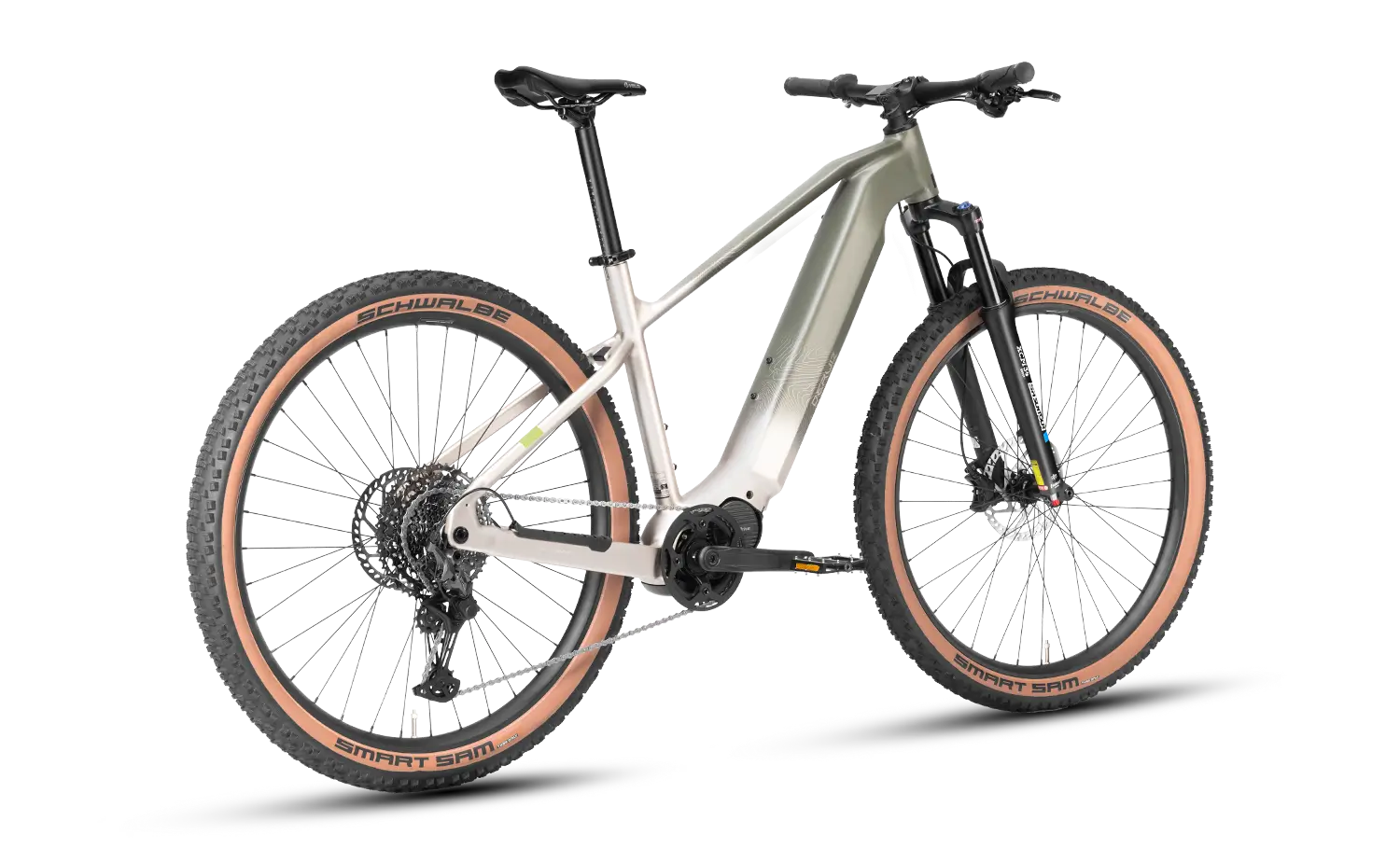

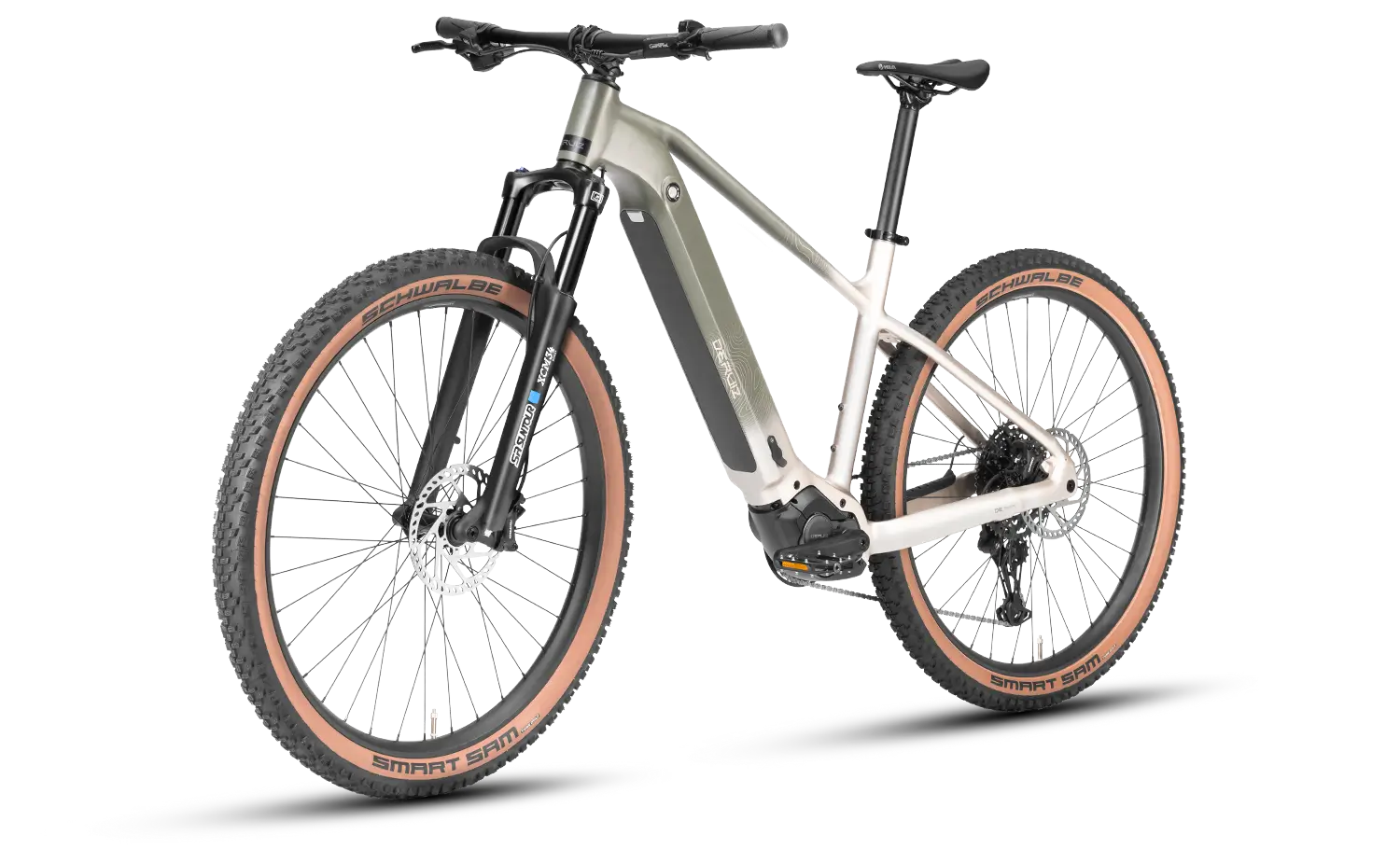

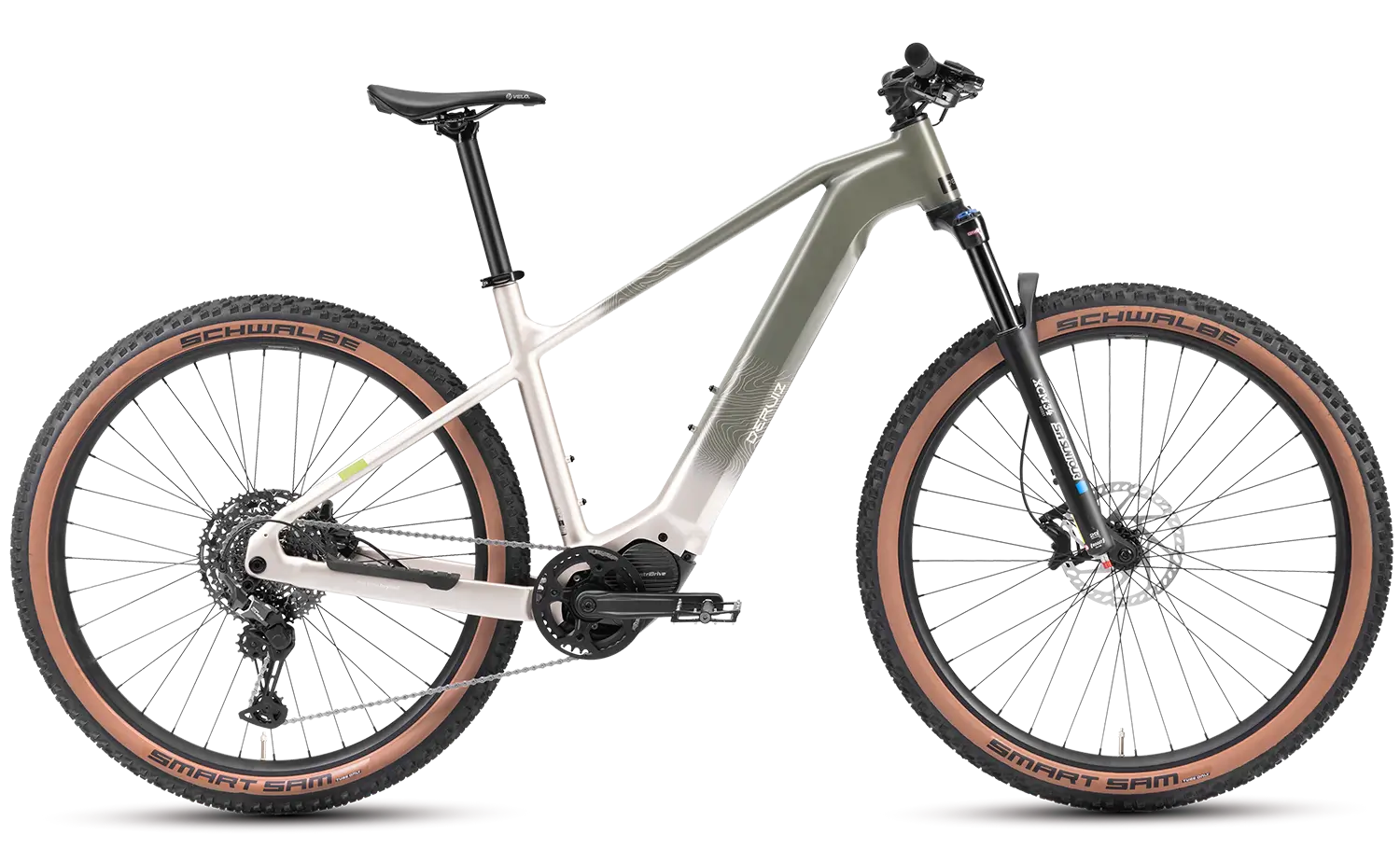

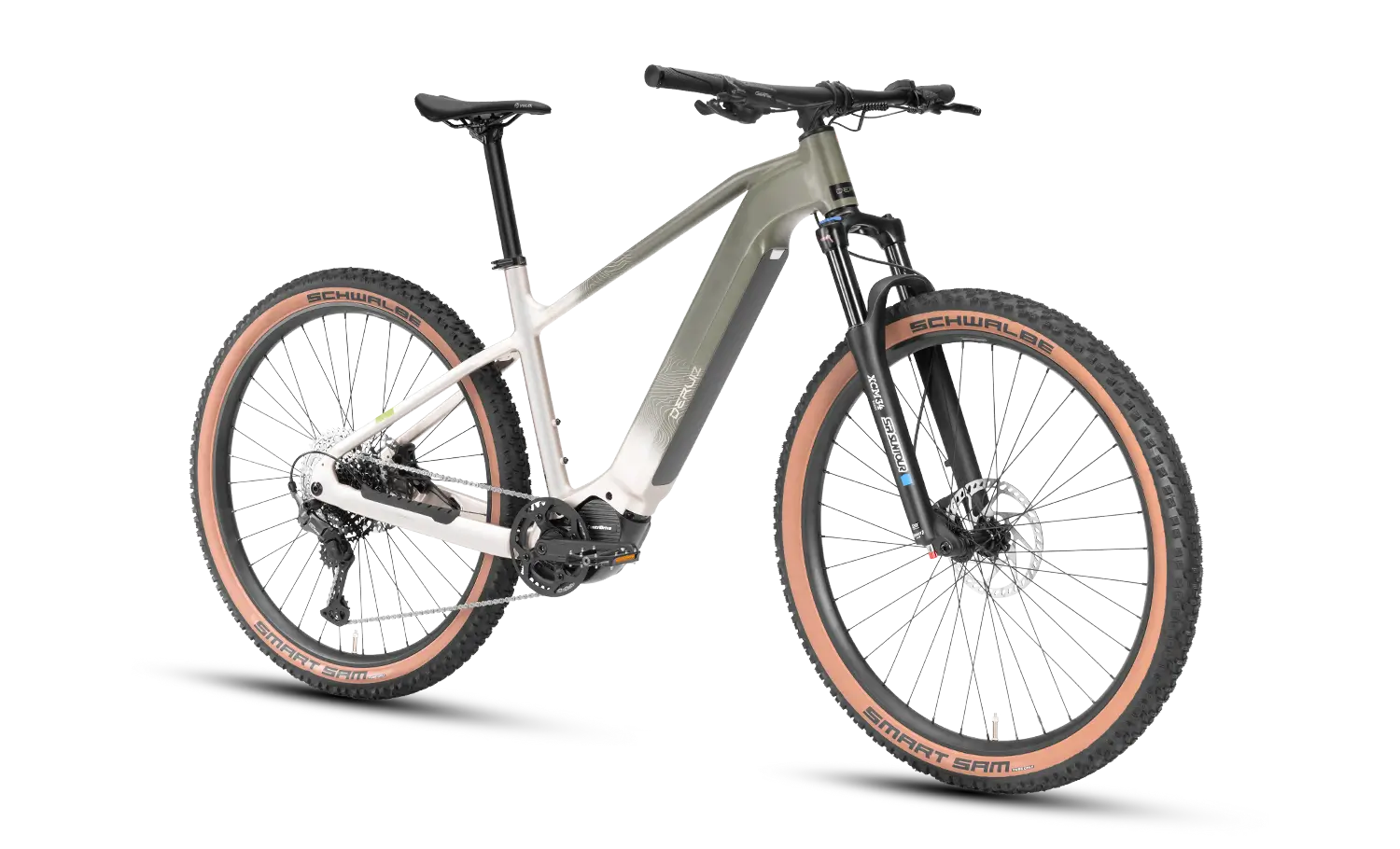

DOLOMIT
×
The colors of the Dolomit capture the moment when light glides across the lake – clear, calm, and powerful. A tribute to the mountains reflected in its waters – and to the freedom to climb them.
A lightweight in the heavyweight class.
720 Wh of power. 110 Nm of torque. Yet only 21,6 kilograms (without battery). The Dolomit plays in the top league – light, precise, and strong. Its 6061 aluminum frame has undergone 87 topology optimizations to achieve maximum stiffness at minimum weight. The nearly perfect 49,2-to-50,8 front/rear balance delivers a ride that feels precise, calm, and instinctive – almost like an extension of your body. Whether S/M or L/XL, the Dolomit feels tailor-made for your mountain line.
Power that anticipates.
The 720 Wh battery with 39 Samsung 50-GB cells delivers energy for up to 180 kilometers – even on long and demanding tours. An intelligent Battery Management System protects against overheating and deep discharge, while the Sleep Mode conserves energy when idle.
Fully charged in about five hours, it’s ready for your next climb. Robust, splash-resistant (IPX6), and built for endurance – so you can keep going when others turn back.
A lightweight in the heavyweight class.
720 Wh of power. 110 Nm of torque. Yet only 21,6 kilograms (without battery). The Dolomit plays in the top league – light, precise, and strong. Its 6061 aluminum frame has undergone 87 topology optimizations to achieve maximum stiffness at minimum weight. The nearly perfect 49,2-to-50,8 front/rear balance delivers a ride that feels precise, calm, and instinctive – almost like an extension of your body. Whether S/M or L/XL, the Dolomit feels tailor-made for your mountain line.
Power that anticipates.
The 720 Wh battery with 39 Samsung 50-GB cells delivers energy for up to 180 kilometers – even on long and demanding tours. An intelligent Battery Management System protects against overheating and deep discharge, while the Sleep Mode conserves energy when idle.
Fully charged in about five hours, it’s ready for your next climb. Robust, splash-resistant (IPX6), and built for endurance – so you can keep going when others turn back.
Drive & Control
Reads the mountain before you feel it.
The Dolomit reacts before you do. An integrated 50 Hz inclination sensor continuously analyzes terrain changes, while Auto Mode adjusts motor output in just 0,1 seconds. Gyro and torque sensors work together like a digital mountain guide – detecting slopes, gradients, and pedaling intensity to deliver power precisely when you need it. The result: powerful propulsion, natural control, and the feeling of moving in harmony with the mountain.
2D
test drive
×
Safety & Endurance
The Dolomit He remains composed even when things get serious.
Security that grants more freedom.
Components that inspire confidence.
When seconds count, precision is key. The TEKTRO M535 four-piston brakes deliver just that. Dolomit From 25 km/h to a standstill in just 3,8 meters – even in the rain. The SR Suntour XCM fork with 120 mm of travel keeps the front wheel stable, while the Shimano hub ensures precise power transfer. And the Schwalbe Smart Sam 29 x 2.6 tires with a 4,8 mm tread provide reliable grip on any surface. Safety begins at the point of contact – and is evident in every meter you ride.

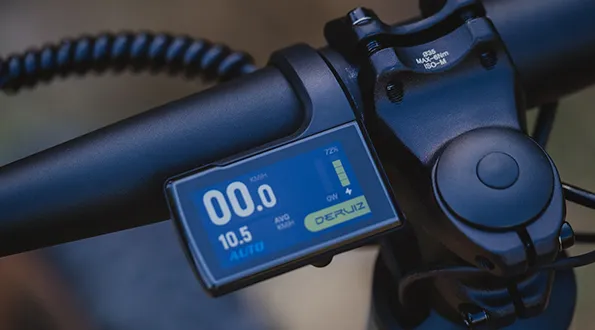

Everything in sight. Always.
The 1,9-inch display connects via Bluetooth to the Deruiz app and shows the real-time motor output. You’ll have full control of power, range, and assist level – on every trail, in any weather.
Terrain competence & spirit of adventure
Traction you can trust.
Even when the ground gives way, the Dolomit stays composed.<br> The combination of Schwalbe Smart Sam tires, balanced weight distribution, and fine-tuned geometry ensures you hold your line – no matter how demanding the terrain.<br> More grip, less energy loss, maximum control.
Built for height and distance.
Real tours don't end after a battery cycle. That's why the Dolomit Based on a mechanical foundation that delivers consistent performance: the Shimano hub, the TEKTRO four-piston brake, and the 34mm Suntour suspension fork – tested in real-world conditions: on Kitzbühel ice, in the Harz mud, and on Black Forest rocks. After 60 kilometers off-road, you don't want to hope it will hold up. You want to know it will.
Carrier system
Megie
×
Two Worlds, One Mindset
“We don’t compromise – commuting comfort and trail adventure belong together.”
Lee Weinreich, Creative Director at Deruiz
Two Worlds, One Mindset
“We make no compromises – commuter comfort and trail adventure belong together.”
Lee Weinreich, Creative Director at Deruiz
Connected riding: The Deruiz App
The Deruiz e-bike app is your digital riding companion. It displays battery level, range, and ride data in real time – and lets you adjust the motor assistance to your riding style. Thanks to over-the-air updates, your device stays up to date. Dolomit Always up-to-date – completely automatically.
Find Your Way – Without Detours.
Connect your bike to the app, set your destination, and transfer the route directly to the display. Clear icons guide every turn – so you can stay on course without constantly checking your phone.
Everything that counts – after every ride.
After each tour, you’ll see your route summary: distance, time, average power, and map view – all neatly displayed in the app. See not just where you’ve been, but how you rode.
110 Nm Motor
ZentriDrive mid-motor – 110 Nm of pure dynamism. Developed in-house by Deruiz: weighing only 2,85 kg, with up to 900 W of power. Featuring a precise torque sensor for instant acceleration – catapult start included.
720 Wh Battery
<b>720 Wh Samsung – Energy for big rides.</b><br> The 48 V system delivers consistent output and up to 180 km of range – efficient, durable, and always ready for new elevation gains.
Four-Piston Braking Power
<b>TEKTRO M535 – Four pistons, one purpose: safety.</b><br> Precision braking power brings the Dolomit to a stop from 25 km/h in just 3.8 meters – reliable, even on wet descents.
SR Suntour XCM Fork
<b>SR SUNTOUR XCM34 BOOST – Control on any terrain.</b><br> 120 mm of travel and sturdy 34 mm stanchions absorb hits with ease – reducing strain on hands and back during long off-road rides.
MTB Tires
<b>Schwalbe Smart Sam – Grip that keeps its promise.</b><br> The 29 × 2.6 Performance tires with puncture protection make full use of the 110 Nm motor – for confident traction on asphalt, gravel, and trail.
Shimano 11-Speed Shifter
<b>Shimano CUES 11-speed – Precision in every gear.</b><br> The 36T chainring, 11–50T cassette, and 110 Nm mid-motor ensure smooth transitions – uphill or down.
The Dolomit – for those who answer the call of the mountains.
Singletrack, gravel, mud – the Dolomit is in its element when things get dirty.
The shortest path leads outside. From the office to the bay, from cobblestones to ridgelines – the Dolomit knows only one destination: freedom.
180 kilometers later. What remains: dirt on the tires and peace in your mind.
THAT IS WHAT OUR CUSTOMERS SAY
Stores
Tests videos
"Powerful off-roader"
The test scores well. Dolomit with strong propulsion, large 29-inch wheels and solid handling characteristics on light terrain.
Team Roggendorf
10.400 Followers
The new EMTB with 110 Nm in the first test review, the bike just wants to move forward!
TommysTechReviews
42.500 Followers
A powerful mountain bike has been missing from Deruiz's lineup so far. What do you say—has it been a success?
scooter heroes
143000 Followers
110Nm 🚀 Mountain bike 2026 – What can the new bike really do? 🤯
×

TECHNICAL DATA

Frame
Material Aluminium 6061
Sizes S/M: 40 cm, M/L: 47 cm
Frame type Diamond frame, unisex
Suspension
Fork SR SUNTOUR SF19-XCM34 BOOST, hydraulic lockout, 120 mm travel
E-Bike System
Motor mid-engine Deruiz ZentriDrive, 48 V / 250 W (max. 900 W), 110 Nm torque
Pedal sensor Cadence and torque sensor, 6 assist modes (Eco / Tour / Sport / Turbo / Boost / Auto)
Battery 48 V / 720 Wh Samsung battery, range up to 180 km
Display Deruiz LCD with Bluetooth, Walk Assist, and Auto Hold
Charger Deruiz 48 V / 3 A, full charge in approx. 5 hours
Lighting None (pre-wired for front light)
Gearing & Brakes
Brake system TEKTRO HD-M535 hydraulic disc brake (203 / 180 mm)
Shimano MT200 hydraulic disc brakes (180 / 180 mm)
Shifter Shimano CUES ASLU6000T1R, 11-speed
Cassette Shimano CUES ACSLG40011150, 11-speed, 11–50T
Crankset 36T (narrow-wide), 170 mm
Cockpit
Handlebar Deruiz MTB flat bar, 740 mm width, 9° backsweep, 5 mm rise
Stem 45 mm length, 0° rise, 35 mm clamp, 28,6 mm steerer, non-adjustable
Grips Velo 776AD3, 130 mm, black silicone
Headset Threadless industrial bearing, 28,6 × 52–52 × 39,8 mm, 14 mm stack
Wheels
Front Hub Thru-axle, 110 mm
Rear Hub Thru-axle, 148 mm
Rims Double-wall aluminum, 36 holes, 29", ETRTO 622–65 (29 × 2,6)
Tires Schwalbe Smart Sam Performance, E-50, 65–622 (29 × 2,6), with puncture protection, brown sidewalls, no reflective stripe
Equipment
Seatpost Ø 31,6 × 350 mm, two-bolt clamp
Saddle Velo 1C50AF F24B, black, with scale
Pedals Deruiz K303P MTB, metal, anti-slip, with reflectors
Kickstand Adjustable side stand
Mudguards None
Rack None
PRODUCT INFORMATION
App
IOS
google play
Deruiz E-Bike App for iOS & Android (QR code download available)
App: Deruiz Ebike
Permissible total weight (including e-bike) 170 kg
Color Black Mirage, Drizzle Green
Net weight (without battery) 21,70 kg
Net weight (complete vehicle) 25,70 kg
Packaging size 1650 x 250 x 850 mm

Who is the Dolomit made for?

● Perfect for riders who seek power, control, and endurance in one bike.
● For those who love steep climbs, long trails, and rough terrain.
● For adventurers who don’t want to choose between everyday rides and adrenaline.
● For purists who value robust engineering and precise handling.

DIMENSIONS

M / L
  • A
    maximum height pedal to seat
    870 / 915 mm
  • B
    minimum height pedal to seat
    690 / 720 mm
M / L
  • A
    Reach
    440 / 490 mm
  • B
    Top Tube (Horizontal)
    600 / 630 mm
  • C
    Head Tube
    110 / 120 mm
  • D
    Stack (Height)
    650 / 700 mm
  • E
    Head Tube Angle
    68 °
  • F
    Wheelbase
    1190 / 1220 mm
  • G
    Seat Tube Angle
    73 °
  • H
    Seat Tube
    410 / 480 mm
  • I
    Chainstays
    465 / 470 mm
  • J
    Bottom Bracket Height to Hub
    90 / 100 mm
Does my inseam fit this bike?
Service without detours.

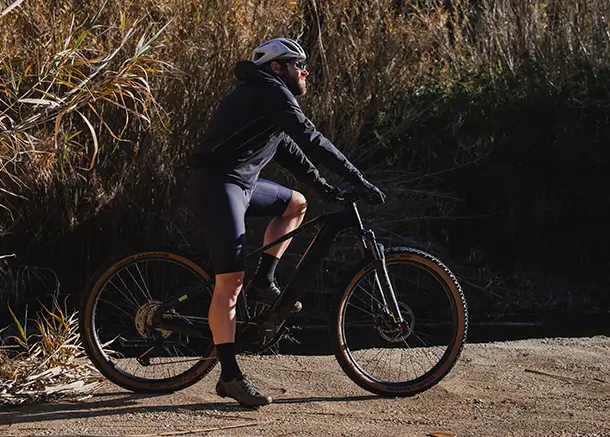

In the video you can see how easy it is. Dolomit unpacked and assembled.
×

faq

Yes. Deruiz works with a steadily growing network of dealers and test drive partners throughout Germany. You can find more information here. here.

A full charge takes about 5 hours when the battery is completely discharged.

Yes. The battery can be easily removed and charged externally.
It is also lockable — once secured, it cannot be removed without a key, ensuring maximum safety even when parked outdoors.

The Dolomit is primarily designed as a sporty e-MTB, but it is generally compatible with standard bicycle trailers on the market.Please note that attaching a trailer may alter the bike’s handling, especially on rough terrain.

Processing usually takes 1–2 business days.<br> Shipping typically takes 3–5 business days within Germany and 3–7 business days internationally. Deliveries are made on business days only.<br> For pre-orders, delivery dates will be specified separately.

Online:
Our service team typically responds within one hour during business times.
Offline:
Across Germany, more service locations are added every month. Find your nearest service point Here You will find the nearest service point.

A 48-volt system delivers higher power and stronger acceleration, especially noticeable on steep climbs. While many manufacturers avoid it for cost reasons, Deruiz uses 48 V as standard across most models — for better control, efficiency, and riding enjoyment.

The Dolomit uses many standardized components, making small adjustments (e.g. grips, saddle, or handlebar) easy to do through your local bike shop. Please note: Modifications to major components (e.g. motor, electronics, or frame) may void the warranty.

After each off-road ride, clean your bike with a damp cloth or soft brush.<br> Avoid using high-pressure cleaners to protect the motor, battery, and bearings.<br> Regularly check tire pressure, chain tension, and brake pads — it’s the best way to keep your Dolomit performing at its peak.
